15.6 Inch Desktop POS Device Touch Screen Self Service Payment Kiosk With Printer
Quick details of Desktop Pos Device Self Service Payment Kiosk :
1. 15.6inch 1080P high resolution screen.
2. BOE original panel brand, A level.
3. Tabletop standing metal case frame with tempered glass
4. 10 fingers touch screen, capacitive touch.
5. With 80mm thermal paper thermal printer.
6. With QR code scanner.
7. With NFC card reader function.
8. With POS holder on right side,client can install their own POS device
9. Android 11 OS or Windows 10 pro system
10. Customized function:size,color,logo,hardware,etc
Specification of Desktop Payment Terminal Kiosk:
| Resolution | 1920*1080 |
| Panel | BOE original panel, A level |
| Display area | 344*193 mm |
| Brightness | 300cd/m2 |
| Number of Color | 16.7M |
| Response time | 8 (ms) approximately |
| Contrast | 1000:1 |
| View angle | 178°/178°(H/V) |
| Life Time | > 50000 (hours) |
| Power Supply | AC 110V~240V,50/60HZ |
| Power Consumption | 50W |
| Photo Formats | JPEG ,BMP ,GIF ,PNG |
| Audio Formats | MP3,WAV,WMA |
| Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V |
| Shell Material | Aluminum+Metal |
| Bare dimension | TBC |
| Wooden box dimension | TBC |
| Color | White and black |
| QR code scanner | Yes, also support NFC card reader |
| Touch Type | 10 points PCAP touch screen |
| Printer | 8cm Thermal printer inbuilt |
| POS holder | On side |
| Model | Try to do the same as picture, base fixed onto counter with screws, maybe front openning but not sure, need supplier's suggestion |
| Normal Working Temperature | 0°——50° |
| Normal Storage Temperature | -20°——60°
|
| CPU | RK3288 Quadcore Cortex-A17 1.8GHz |
| Network connection | LAN, WIFI |
| RAM | DDR3 2G |
| Memory | 8G |
| The operating system | Android 7.1, support Google play |
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 |
| CPU | i3, i5, i7 |
| Network connection | LAN, WIFI |
| Memory | DDR3 4G or 8G |
| SSD | 128G or 256G |
| The operating system | Beta Win10 |
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 |

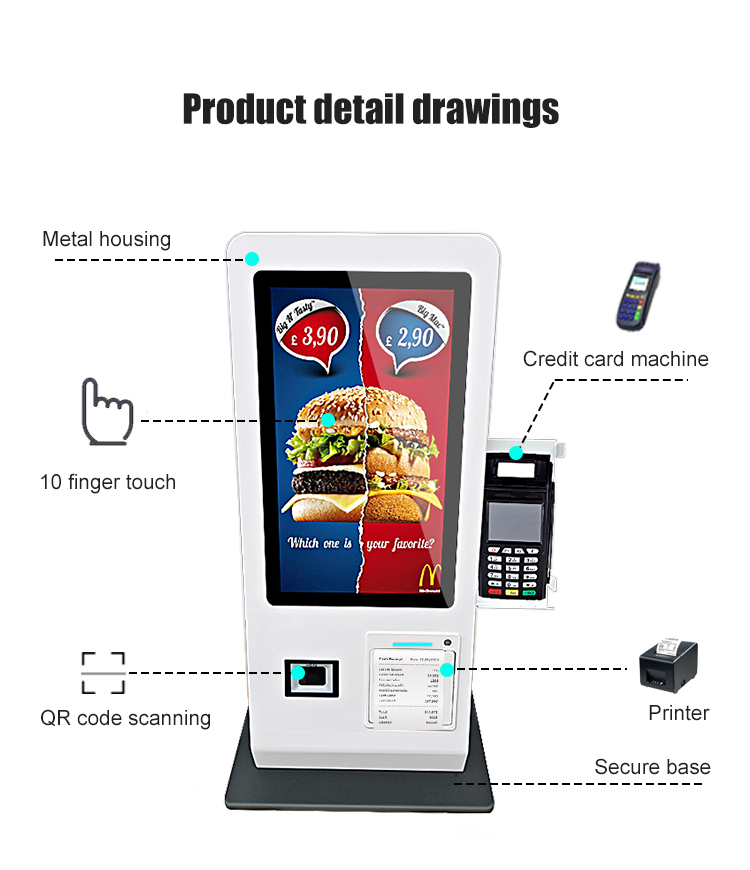

Description of Touch Screen Payment Kiosk:
This touch screen payment kiosk is designed for using on countertop, with screen size in 15.6inch, with 80mm thermal paper printer inbuilt, QR code scanner and NFC card reader.On the right side have POS holder for credit card payment.
Desktop design high quality metal shell and very stable for counter.Suitable tilt angle for client touch the screen.Other size optional:21.5",24"
Various motherboard can be choose:Android motherboard or Min PC I3,I5,I7 CPU.If you have own media player box,we can make it with HDMI input for connect your media player box.
Default connect the internet via RJ45 cable,WIFI,4G modem optional.
Application of countertop POS device payment kiosk
This counter self ordering machine usually be installed in hotel reception desk, bar counter, cinema cash register etc.
