250cd/M2 AIO 10 Points PCAP Touch Screen Kiosk With Thermal Printer

Shenzhen MercedesTechnology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

250cd/M2 AIO 10 Points PCAP Touch Screen Kiosk With Thermal Printer

Brand Name : Genevision

Model Number : MAD-220

Certification : CE CCC ROHS

Place of Origin : China

MOQ : 5PC

Price : USD300-USD700/ unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000pc per month

Delivery Time : 10-15 working days

Packaging Details : Standard export carton reinforced by wooden box

Keyword : Restaurant self service Ordering Kiosk

Screen size : 21.5inch to 55inch

Touch screen : 10-point PCAP touch screen table

System : Android or Windows 10

Internet : Wifi, RJ45 or LAN

Material : Metal shell and tempered glass

Certificate : CE, FCC, ROHS, CCC

Thermal printer : Yes, inbuilt into stand

Installation : Floor standing

Application : Reception desk, office, exhibition center

MOQ : 1PC

Contact Now

Android 7.1 or 9.0 PC All In One Win10 22" to 55" Touch Screen Kiosk Podium with Thermal Printer


Quick details LCD touch screen kiosk:

1. Hotsale size is from 21.5inch to 55inch.

2. 10 point capacitive touch screen podium.

3. Thermal printer inbuilt in the floor stand.

4. Android or Windows system.

5. Customization project also welcome.

Specification of capacitive touch screen pc all in one:

Panel size 21.5inch to 55inch
Resolution 1920*1080
Panel brand BOE, AUO etc. A level
Display area 476*268mm
Brightness 250cd/m2
Number of Color 16.7M
Response time 8 (ms) approximately
Contrast 1000:1
View angle 178°/178°(H/V)
Life Time > 50000 (hours)
Power Supply AC 110V~240V,50/60HZ
Power Consumption 40W
Photo Formats JPEG ,BMP ,GIF ,PNG
Audio Formats MP3,WAV,WMA
Video Format MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V
Shell Material Aluminum+Metal
Bare diemension TBC
Wooden box dimension TBC
Thermal printer Inbuilt
Touch Type 10-point capacitive touch screen
Normal Working Temperature 0°——50°
Normal Storage Temperature -20°——60°
Accessory Power Cable, Allen key
OSD Language English, Chinese, French, German, Italian, Spanish,Arabic etc.

CPU RK3288 Quadcore Cortex-A17 1.8GHz
Network connection LAN, WIFI
RAM DDR4 2G
Memory 16G
The operating system Android 7.1, 9.0, support Google Play
Interface HDMI out*1, USB*1, USB OTG*1, Lan*1, SD card*1

CPU I3, I5, I7
Network connection LAN, WIFI
Memory DDR3 4G
SSD 128G
The operating system Windows 10
Interface HDMI out*1,USB *4 ,LAN *1, VGA*1

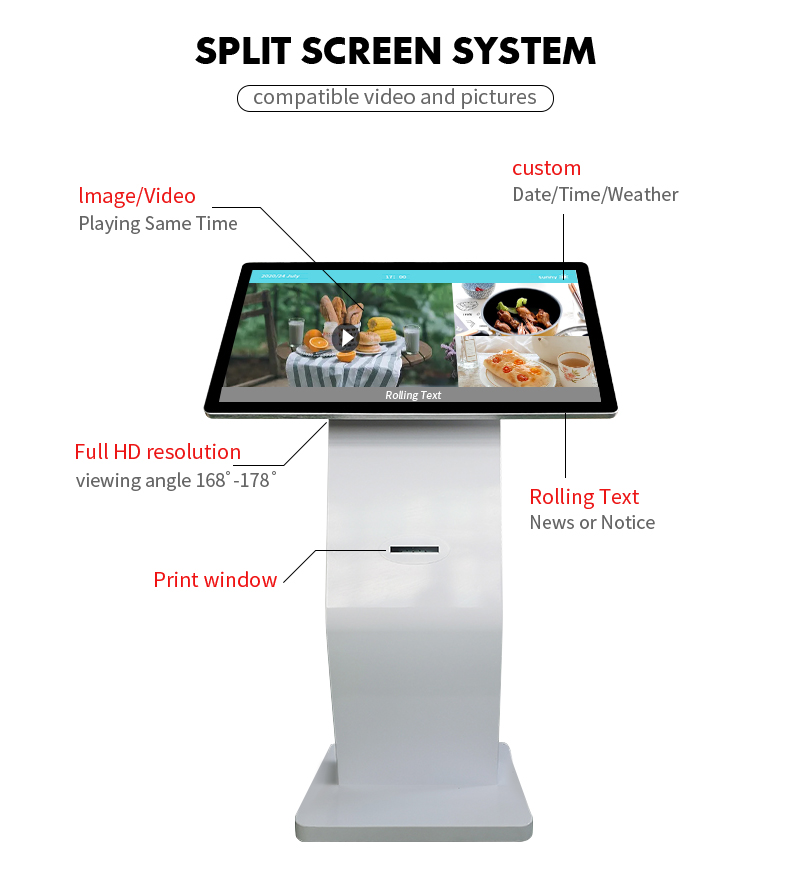

Description of LCD touch podium with printer:

It's very common to see this kind of K-style touch screen table in public, but I think it's the first to see it has a thermal printer inbuilt in the floor stand, this design can save volume a lot and also can meet customer's requirements with printer, so it can be used very well as a line up call machine, when you reach there, you touch the screen and print your number out and waiting for your turn.

The design is slim and can save volume a lot for shipping, 10 point multi capacitive touch screen response fast and smooth, it's the best solution for man-machine interaction, metal shell with 4mm thickness tempered glass in front, thermal printer inbuilt into the floor stand, here is the main spec of the thermal printer:

Print Method: direct thermal
Print density: 8dot/mm
print direction: feed direction
Print Speed: 150mm/s(Max )
Paper width: 79.5±0.5mm
Printable width: 72mm
Cut paper method: partial cut/ full cut
Line width: 3.75mm
Width of paper loaded:80mm
Anti-blocking: with
Buzzer: with
PageType:Thermal Paper
Paper width:79.5±0.5mm
Paper roll:80mm(Max)

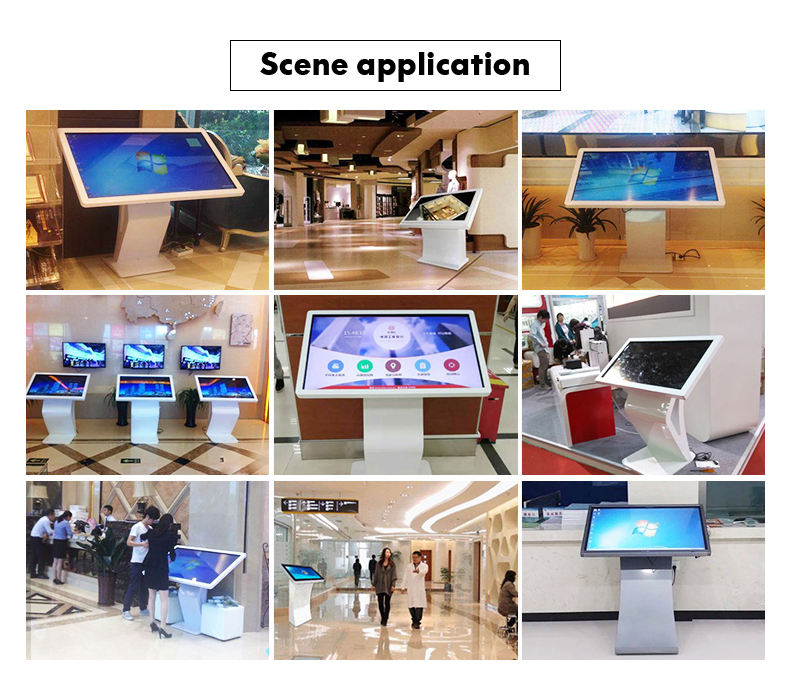

Application of thermal printer inbuilt LCD touch screen kiosk:

This smart queuning up touch screen kiosk can be used in the bank, kindergarten, also the printer inbuilt LCD touch screen station can be put in government office, hospital and school.


250cd/M2 AIO 10 Points PCAP Touch Screen Kiosk With Thermal Printer

250cd/M2 AIO 10 Points PCAP Touch Screen Kiosk With Thermal Printer

250cd/M2 AIO 10 Points PCAP Touch Screen Kiosk With Thermal Printer
